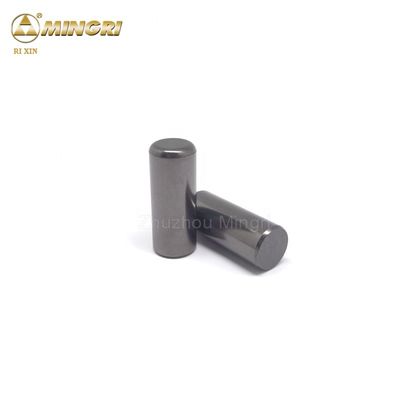

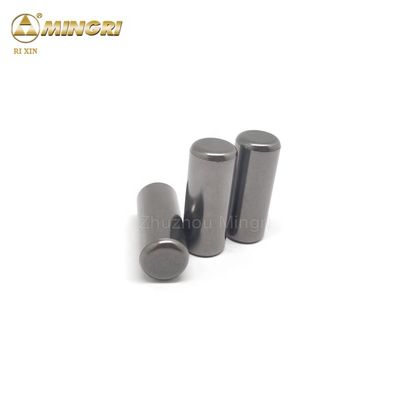

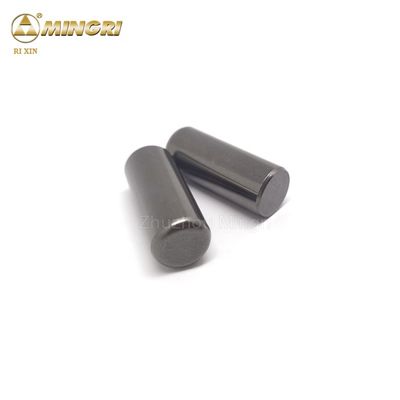

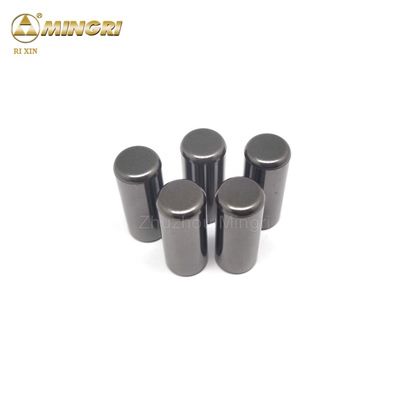

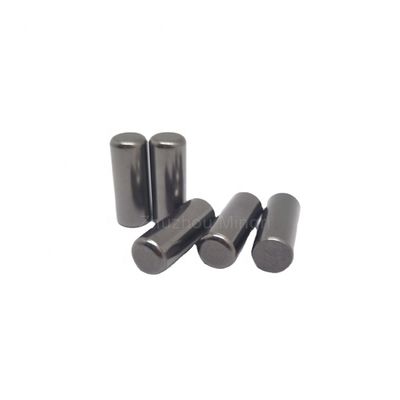

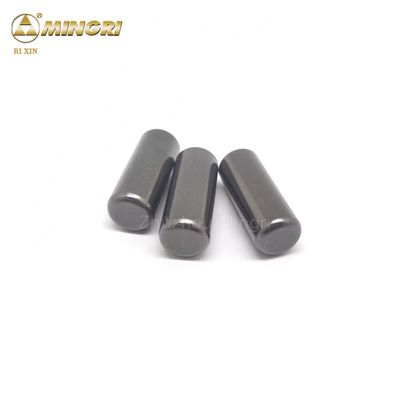

High-Abrasion Resistance Polished Tungsten Carbide Studs for HPGR with Customized Size
Détails sur le produit:
| Lieu d'origine: | Hunan, Chine |
| Nom de marque: | Rixin |
| Numéro de modèle: | Goujon en carbure de tungstène |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|---|
| Prix: | $49 |
|
Détail Infomation |
|||
| Matériel: | Carbure de tungstène | Traitement de surface: | Terminer Mise à la terre |
|---|---|---|---|
| TRS: | > 3000 N/mm3 | Dureté: | 85-92 HRA |
| Durée de vie: | 10 000 à 30 000 heures | Densité RX-11: | 14,4 g/cm3 |
| Dureté RX-11: | 87 HRA | TRS RX-11: | 2700 N/mm2 |
| Densité RX-15: | 14g/cm3 | Dureté RX-15: | 87 HRA |
| TRS RX-15: | 3000 N/mm2 | Densité RX650: | 13,8 g/cm3 |
| Dureté RX650: | 88.2 HRA | TRS RX650: | 3100 N/mm2 |
| Diamètre: | 10 à 20 mm | ||
| Mettre en évidence: | High-Abrasion Resistance Tungsten Carbide Studs,Polished HPGR Studs,Customized Size Grinding Wear Parts |
||
Description de produit
| Item | Tungsten carbide studs |
|---|---|
| Grade | YG11C, YG15, YG15C, YG18, YG20 |
| Sizes | Standard or customized |
| Brand | Rixin |
| Country of Origin | Zhuzhou, China |
| Usage | High pressure grinding roller, iron ore, cement crushing |
High Pressure Grinding Roller is an energy-efficient crushing equipment of new technologies, widely used in grinding cement clinker, limestone, bauxite, iron ore. High performance of carbide stud extends the life of High Pressure Grinding Roller. Zhuzhou Mingri provide quality carbide studs with good wear resistance and high compressive strength, can satisfy the requirements of different conditions.
| Grades | Density(g/cm3) | Hardness(HRA) | T.R.S ≥N/mm2 |
|---|---|---|---|
| RX-11 | 14.4 | 87 | 2700 |
| RX-15 | 14 | 87 | 3000 |
| RX650 | 13.8 | 88.2 | 3100 |
| RX20 | 13.5 | 85.5 | 3200 |
Other grades can be offered as per customers' requirement. Grades above are exclusive grade we developed for rolling machine. Good wear resistance and high strength are suitable for metal smashing with high working efficiency.
- Service life: 8000-10000 hrs for iron ore crushing and over 25000hrs for cement crushing
- Total production of HPGR studs: over 800tons
| Diameter | Height | Dome | Chamfer |
|---|---|---|---|
| 20 | 40 | SR10 | 2xR5.0 |
| 20 | 35 | SR10 | 2xR5.0 |
| 20 | 30 | SR10 | 2xR5.0 |
| 16 | 55 | SR8 | R2.0 |
| 16 | 45 | SR8 | 2xR5.0 |
| 16 | 40 | SR8 | 1xR2.0 |
| 16 | 35 | SR8 | R2.0 |
| 10 | 22 | SR5 | R1.0 |
| 10 | 20 | SR5 | R1.5 |
| H | Ø | Approx Weight (g) |
|---|---|---|
| 50 | 16 | 137 |
| 45 | 18 | 156 |
| 40 | 20 | 172 |
| 40 | 16 | 108 |
| 35 | 20 | 150 |
Other types and sizes can be customized according to customers' requirements.
All the products must be inspected strictly with the ultrasonic and only those haven't any harm such as pore can be shipped out. High density, high wear & impact resistance, which lead them a long lifetime.
We have powder mixing, pressing, sintering, finishing, surface treatment, mould design workshops and physical and chemical labs for inspection. We have hundreds of updated equipments to make sure month capacity 50 tons and excellent quality.
